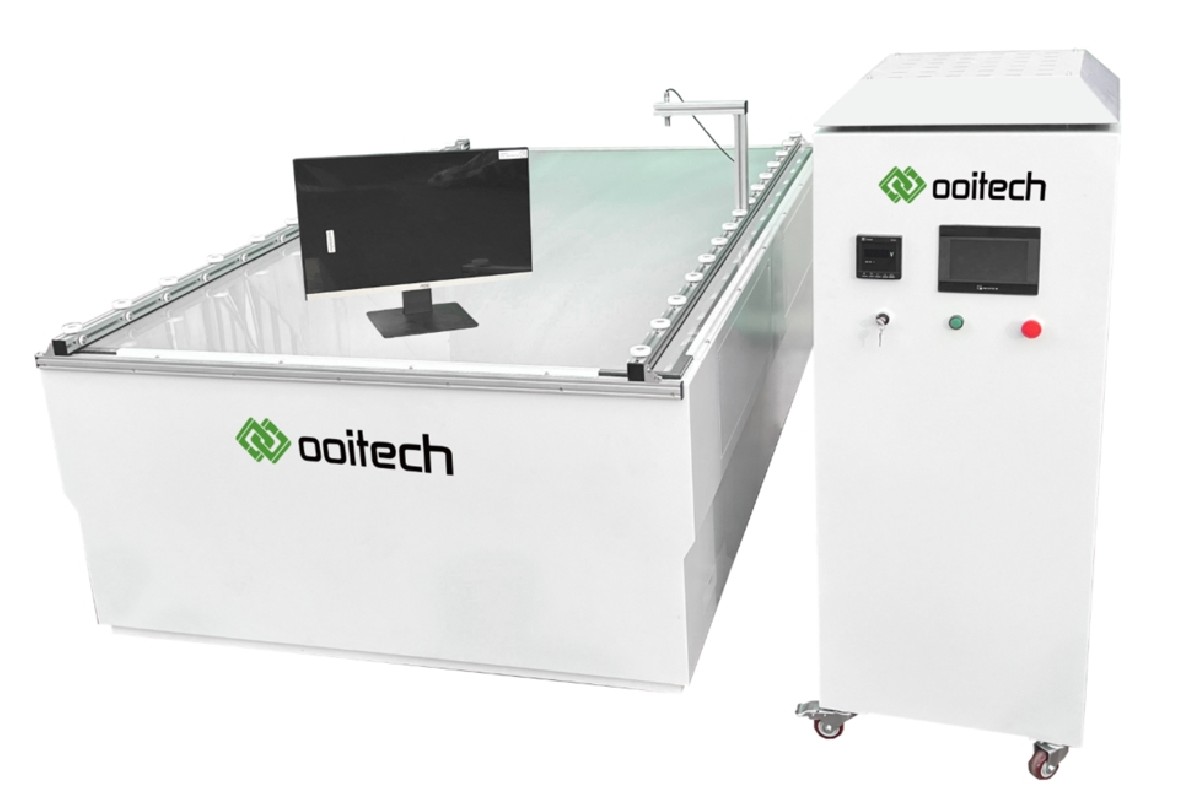

Topcon HJT IBC HBC SUNPOWER Solar Panel Tester Solar Simulator IV tester
Topcon, HJT, IBC, HBC, SUNPOWER Solar Panel Tester Solar Simulator IV tester
Machine Function
Sun Solar Simulator is used to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files.
Technical parameter
MODEL | OTMT-A | ||||
Lamp spectrum | In line with iec60904-9 spectral Irradiance distribution requirement(AM1.5) | ||||
Light intensity | 700_1200W/M2 continuous adjustable | ||||
Light intensity non-uniformity | ≤±1% 【A】 | ||||
Light intensity instability degree of irradiation(STI) | ≤±1.5%【A】 | ||||
Test results consistency | ≤±1%【A】 | ||||
Single flash time | 10ms | 60ms | 100ms | ||
Effective test range | 2600×1500mm | ||||
Measuring voltage | 0mV-100V(resolution 1mV) | ||||
Measuring current | 0mA-25A(resolution 1mA) | ||||
Power Supply | AC220V/50HZ/1PH | ||||
Power | 2KW | 3KW | 3KW | ||
Test parameters | Isc、Voc、Pmax、Vm、ImFF、EFF、Temp、Rs、Rsh | ||||
Xenon Lamp service time | 300,000flash times | ||||
Weight | 400 KGS | 420KGS | 450KGS | ||

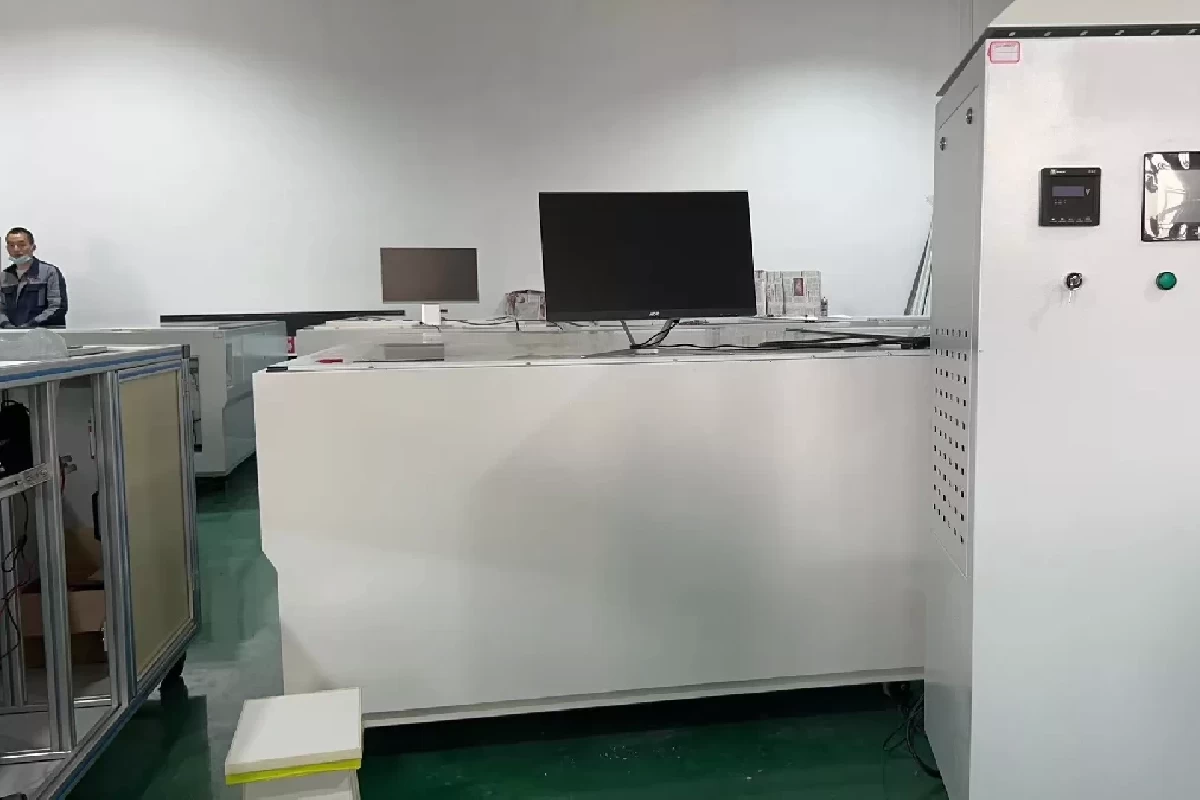

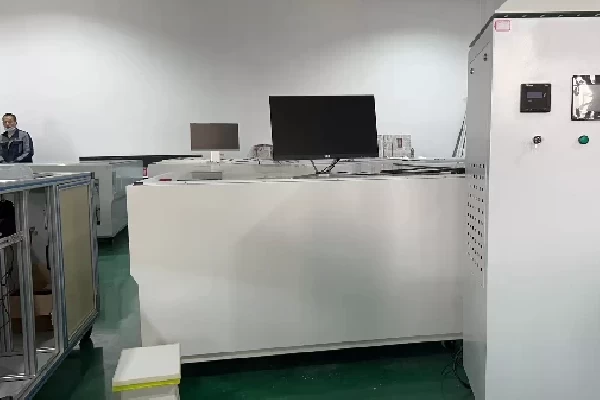

Detail picture
About US
Ooitech, One-stop Solution For Solar Panel Production Line.
Has The Following Required Machinery And Accessories

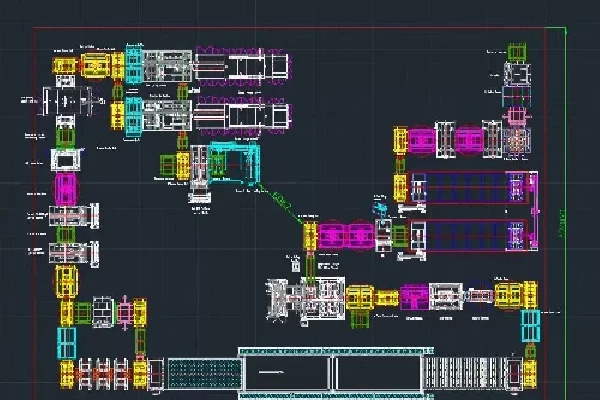

Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assitance, Solar Power Station installation technical support Etc.
